Cargo Container Mods
- Offered by AWOL, Inc.
CALL US TODAY AT (843) 744-7888
MADE IN THE USA and NO TOOLS Required!
Container Shelf Brackets
Two Shelves
Three Shelves
Four Shelves
14-1/2 " (4) 2x8s 2208 2400 lbs 3600 lbs 4800 lbs $140.00
18-1/2" (4) 2x10s 2210 2200 lbs 3300 lbs 4400 lbs $142.00
22-1/2" (4) 2x12s 2212 2000 lbs 3000 lbs 4000 lbs $152.00
14-1/2 " (6) 2x8s 3208 2400 lbs 3600 lbs 4800 lbs $162.00
18-1/2" (6) 2x10s 3210 2200 lbs 3300 lbs 4400 lbs $165.00
22-1/2" (6) 2x12s 3212 2000 lbs 3000 lbs 4000 lbs $175.00
File Storage
Pipe Racks
* Board length is determined by the user. Evaluation of load versus board strength must be made by the user prior to application of loads.
** Standard Structural construction grade lumber sizes.
*** Please note that the top shelf must be installed prior to use with any other shelf.
22-1/2" (6) 2x12s 3212BB 2400 lbs 3600 lbs 4800 lbs $182.00
22-1/2" (8) 2x12s 4212HC 2400 lbs 3600 lbs 4800 lbs $250.00
Shelf Depth
Lumber Req'd
Shelf Load Capacity w/3 Brackets
Shelf Load Capacity w/2 Brackets
Shelf Load Capacity w/4 Brackets
Price per Bracket
Model
Shelf Depth
Lumber Req'd (Total)
Model
Shelf Load Capacity w/2 Brackets
Shelf Load Capacity w/3 Brackets
Shelf Load Capacity w/4 Brackets
Price per Bracket
18-1/2" (8) 2x10s 4210 2000 lbs 3000 lbs 4000 lbs $ 175.00
3 30 degrees 3000 3600 lbs 5400 lbs 7200 lbs $175.00
4 30 degrees 4000 3600 lbs 5400 lbs 7200 lbs $220.00
5 30 degrees 5000 3600 lbs 5400 lbs 7200 lbs $250.00
No. of Arms
Arm Angle
Rack Load Capacity w/2 Brackets
Rack Load Capacity w/3 Brackets
Rack Load Capacity w/4 Brackets
Price
Model
The Four Shelf Model provides five equal height storage spaces (four shelves and the floor). This model provides approximately 17 inches of space on each shelf and on the floor under the lowest shelf. Two brackets minimum required to make one shelving unit.

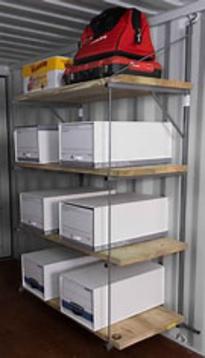

The File Storage Brackets were developed to provide high density archive file storage that is readily accessible. Both models accept file boxes in all three sizes (letter, legal and multi-use). File boxes stack a maximum of two (2) tall and/or two (2) deep per shelf. This allows easy access and superior organization of your files. Two brackets minimum required to make one shelving unit.
* Board length is determined by the user. Evaluation of load versus board strength must be made by the user prior to application of loads.
** Standard structural construction grade lumber sizes are given.
*** Please note that the top shelf must be installed prior to use with any other shelf.

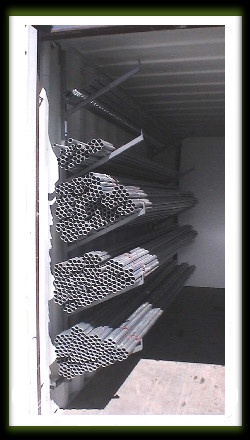

The 3000, 4000, and 5000 Series Pipe Racks provide 3, 4, or 5 support arms set at 30 degree angles to increase volume capacity and strength. The rack includes a safety roll stop at the end of each arm. The 4000 model provides 24 inches of clear floor space below the lowest arm and floor of the container. The 5000 model provides 8 inches of clear floor space below the lowest arm and the floor of the container. Two brackets minimum required to make one pipe rack unit.
* Board length is determined by the user. Evaluation of load versus board strength must be made by the user prior to application of loads.
** Standard Structural construction grade lumber sizes.
*** Please note that the top shelf must be installed prior to use with any other shelf.
* Board length is determined by the user. Evaluation of load versus board strength must be made by the user prior to application of loads.
** Standard Structural construction grade lumber sizes.
*** Please note that the top shelf must be installed prior to use with any other shelf.
Shelf Depth
Lumber Req'd (Total)
Model
Shelf Load Capacity w/2 Brackets
Shelf Load Capacity w/3 Brackets
Shelf Load Capacity w/4 Brackets
Price per Bracket
Shelf Depth
Lumber Req'd (Total)
Model
Shelf Load Capacity w/2 Brackets
Shelf Load Capacity w/3 Brackets
Shelf Load Capacity w/4 Brackets
Price per Bracket
*Pricing does NOT include shipping*
Brackets sold Individually
AWOL Inc. is a Factory Direct Distributor of ConEXTRA shelving products manufactured in the USA. All ConExtra products are made from American steel and subject to 3 cycles of quality control prior to being powder coated. Once powder coated, a fourth and final quality check is performed.

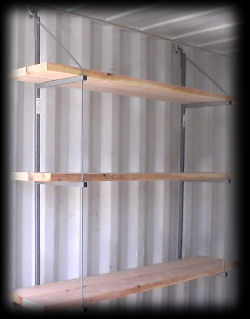

The Three Shelf Models provide a top shelf storage height of 17", middle shelf storage height of 18-1/2", and a bottom shelf storage height of 22". The Three Shelf Models provide approx. 31 inches of clear space under the lowest shelf. Two brackets minimum required to make one unit.
The Two Shelf Models provide a top shelf storage height of 17" and a bottom shelf storage height of 25-1/2". The Two Shelf Models provide approximately 4 ft of clear space under the lowest shelf to maximize use of your storage container. Two brackets minimum required to make one unit.
Please note that the 4212HC is for High Cube Container use only.

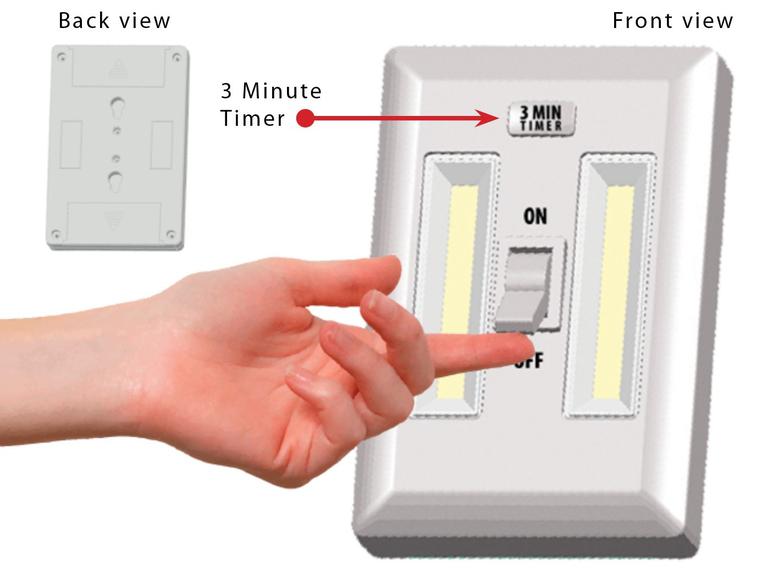

LED SWITCH LIGHTS
NO WIRING REQUIRED
300 Lumens
Requires 3 x AAA Batteries - INCLUDED
Installs in Seconds w/Magnetic Backing
Built in 3-Minute Timer
COB LED Technology
One Year Warranty against Manufacturer Defects
$30 per set (2)
AWOL Inc. recommends a minimum of three sets (6 total) lights per 40ft container, and two sets per 20ft container. Additional lights may be needed - based on personal application and use. Switch lights also feature double sided Velcro Backing for alternate installation.

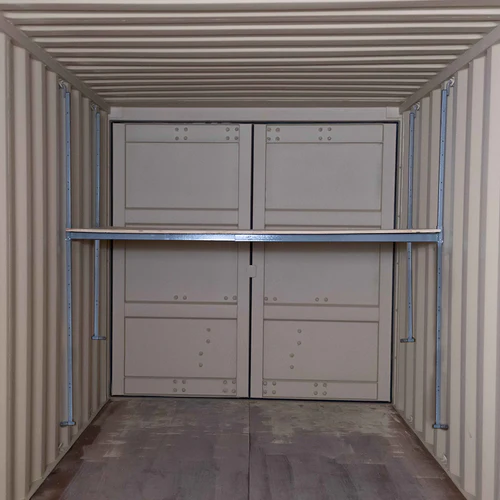

LOFT ASSEMBLY
The Loft Bracket Assembly is designed to span from side to side of the container forming an upper lofted area. The Loft brackets require 3/4" plywood to serve as the platform base.
The brackets are also adjustable, which allows the user the ability to configure various height/space options.
THIS MODEL CAN BE USED IN BOTH STANDARD AND HIGH CUBE CONTAINERS
Model 6137L - $1,350.00
